Performing a Backward or Forward Item Trace in X++ Programming Language
If you are reading this blog, you have likely been scratching your head trying to figure out how to item trace through code since there is no helper class, interface, or something like it to make it simple.
Don't worry! Stoneridge Software has a solution for you. In this blog, we will outline how you can perform both backward and forward item traces using code. What you will see in the sections below acts as a wrapper to the code you need, with two distinct classes: Custom processing class and InventingTrackingBatchSummary Filter Extension.
Let's dive into it:
//Custom Processing Class
As you can see in the code below, these base classes feed into each other, with the code flow being quite similar to how the user clicks Item trace, fills in information on the dialog, and then on the traced item, clicks "Batches" to see related batches.
InventBatch _inventBatch; // TODO parameterize
// Setup
InventTrackingDimTracingRelations traceRelations;
inventTrackingDimTracingCriteria traceCriteria = inventTrackingDimTracingCriteria::construct();
InventTrackingDimTracingHierarchy traceHierarchy = InventTrackingDimTracingHierarchy::construct();
InventTrackingBatchSummaryFilter traceFilter;
// InventDim Setup
InventDim traceInventDim;
traceInventDim.inventBatchId = _inventBatch.inventBatchId;
traceInventDim = InventDim::findOrCreate(traceInventDim);
// Criteria Setup
traceCriteria.parmItemIdCriteria(_inventBatch.itemId);
traceCriteria.parmTraceDirection(ForwardBackward::Backward); // TODO parameterize if needed.
traceCriteria.parmInventDimCriteria(traceInventDim);
// Relation setup
traceRelations = InventTrackingDimTracingSearch::searchNoPack(traceCriteria);
if (traceRelations)
{
// Hierarchy Setup
traceHierarchy = InventTrackingDimTracingHierarchy::newFromTracingResults(traceRelations);
traceHierarchy.childNodes(0);
// Trace setup
traceFilter = InventTrackingBatchSummaryFilter::newHierarchy(traceHierarchy);
traceFilter.create();
// Extract filtered InventBatches
List retInventBatches = traceFilter.getFilteredInventBatches(true);
ListEnumerator iterator = retInventBatches.getEnumerator();
while (iterator.moveNext())
{
InventBatch process = iterator.current() as InventBatch;
// TODO process related InventBatch
}
else {
// No Trace Relations found.
}
// Ext Class (InventTrackingBatchSummaryFilter
You will need this extension class if you are using the above from a custom class. If you are using a form instead, you might be able to get away with using applyfilter() found on the base class and then create a custom method to expose mainDataSource to your form.

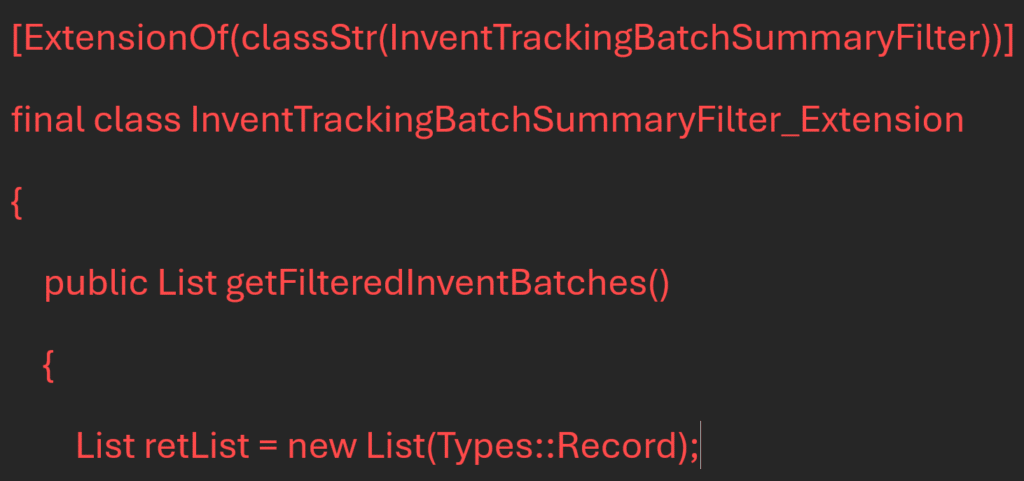

[ExtensionOf(classStr(InventTrackingBatchSummaryFilter))]
final class InventTrackingBatchSummaryFilter_Extension
{
public List getFilteredInventBatches()
{
List retList = new List(Types::Record);
// Not strictly necessary to check but better be safe than to generate a runtime error.
if(filterTmp.tableId == TableNum(InventItemDimTmpFilter))
{
InventDim inventDim;
InventBatch inventBatch;
InventItemDimTmpFilter flt = filterTmp as InventItemDimTmpFilter;
while select flt
join inventDim where inventDim.inventDimID == flt.inventDimID
// TODO Remove if no filtering or action is needed on the InventBatch table.
join inventBatch where inventBatch.inventBatchId == inventDim.inventBatchId
{
retList.addEnd(inventBatch);
}
}
}
return retList;
}
}
